DIMENSIONS AND TECHNICAL SPECIFICATIONS OF 740-741
|
| |
 740 E Z16
|
741 E Z16 |
| Power supply |
230 Vac 50 (60) Hz |
| Absorbed power |
350W |
500W |
| Absorbed current |
1.5A |
2.2A |
| Traction and thrust force |
45 daN |
65 daN |
| Motor rotation speed |
1400 rpm |
| Thermal protection on motor winding |
140 °C |
| Reduction ratio |
1:25 |
| Leaf max. weight |
500kg |
900kg |
| Sliding speed |
12 rpm (pinion Z16) |
| Operating ambient temperature |
-20 °C to +55 °C |
| Protection clas |
IP44 |

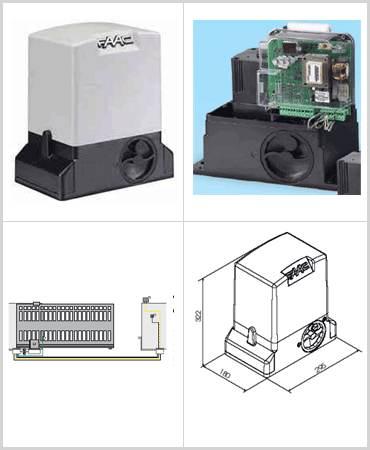

| Dimensions (L x D x H) in mm |
295x225x325(pinion included) |
